5G Architecture
Understanding the core components and structural design of 5G networks
Overview of 5G Architecture

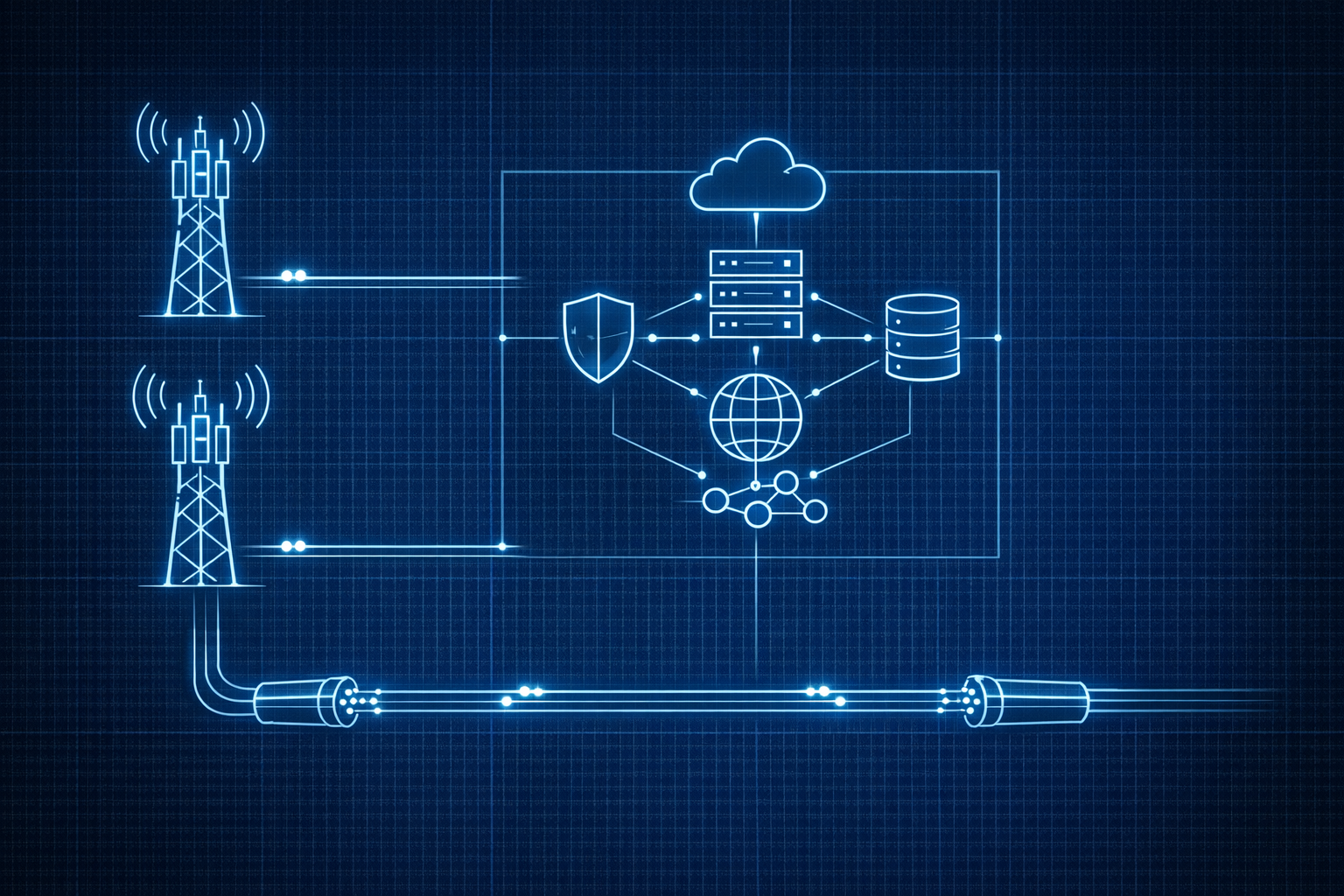

5G network architecture represents a fundamental shift in how mobile networks are designed and implemented. Unlike previous generations, 5G adopts a more flexible, service-oriented approach that enables greater scalability and efficiency. The architecture is built around three main components: the Radio Access Network (RAN), the Core Network, and the transport infrastructure that connects them.
The 5G architecture in Oman follows international standards while being adapted to local requirements and geographic conditions. This technical framework supports the diverse use cases that 5G enables, from enhanced mobile broadband to massive machine-type communications and ultra-reliable low-latency communications.
Core Components
Radio Access Network (RAN)
The RAN consists of base stations and antennas that provide wireless connectivity to user devices. In 5G, the RAN is designed with a split architecture that separates radio functions from baseband processing, enabling more flexible deployment and better performance optimization.
Core Network (5GC)
The 5G Core Network handles authentication, mobility management, and data routing. It uses a service-based architecture with network functions that communicate through standardized interfaces, allowing for greater modularity and easier integration of new services.
Transport Layer
The transport infrastructure connects RAN elements to the core network using high-capacity fiber optic links. This layer must support the increased bandwidth requirements of 5G while maintaining low latency and high reliability for critical applications.
Base Stations
Base stations form the foundation of the 5G Radio Access Network. These installations consist of several key components working together to provide wireless coverage and capacity:
gNodeB (gNB): The 5G base station that replaces 4G eNodeBs. The gNB handles radio resource management, radio bearer control, and connection mobility management. It communicates with user devices through radio signals and with the core network through standardized interfaces.
Antenna Systems: 5G employs advanced antenna technologies including Massive MIMO (Multiple Input Multiple Output) systems with dozens or hundreds of antenna elements. These antenna arrays enable beamforming, which focuses radio signals toward specific users rather than broadcasting in all directions, improving efficiency and capacity.
Small Cells: In addition to macro base stations, 5G deployments use small cells to provide additional capacity in high-traffic areas and improve indoor coverage. These low-power base stations complement the macro layer and help ensure consistent performance across different environments.
Central Unit (CU) and Distributed Unit (DU): 5G base station functionality is split between the CU, which handles higher-layer protocols, and the DU, which handles real-time radio processing. This split enables flexible deployment options and centralized processing for better resource utilization.
Network Functions
The 5G Core Network implements various network functions that work together to provide comprehensive services. Key functions include:
Access and Mobility Management Function (AMF): Handles connection establishment and mobility management for user devices. The AMF acts as the entry point for all connections and manages state information for connected devices.
Session Management Function (SMF): Manages session establishment, modification, and release. The SMF is responsible for IP address allocation and maintaining session state throughout the connection lifecycle.
User Plane Function (UPF): Handles data packet routing and forwarding for user traffic. The UPF is the primary gateway for data entering and leaving the core network, applying traffic policies and performing packet inspection when required.
Authentication Server Function (AUSF): Performs authentication of user devices and ensures that only authorized devices can access the network. This function works with subscription databases to verify user credentials.
Unified Data Management (UDM): Stores subscription data and user profile information. The UDM provides centralized data management for all network functions that require access to subscriber information.
